Closed Loop Transducer Analyzer (TM)
Ultrasonic Transducer High Power Tester
Product Purpose
The product allows for high power frequency sweeps with constant current, constant voltage, and constant power frequency sweeps for linear analysis of impedance response.
What does the program practically do?

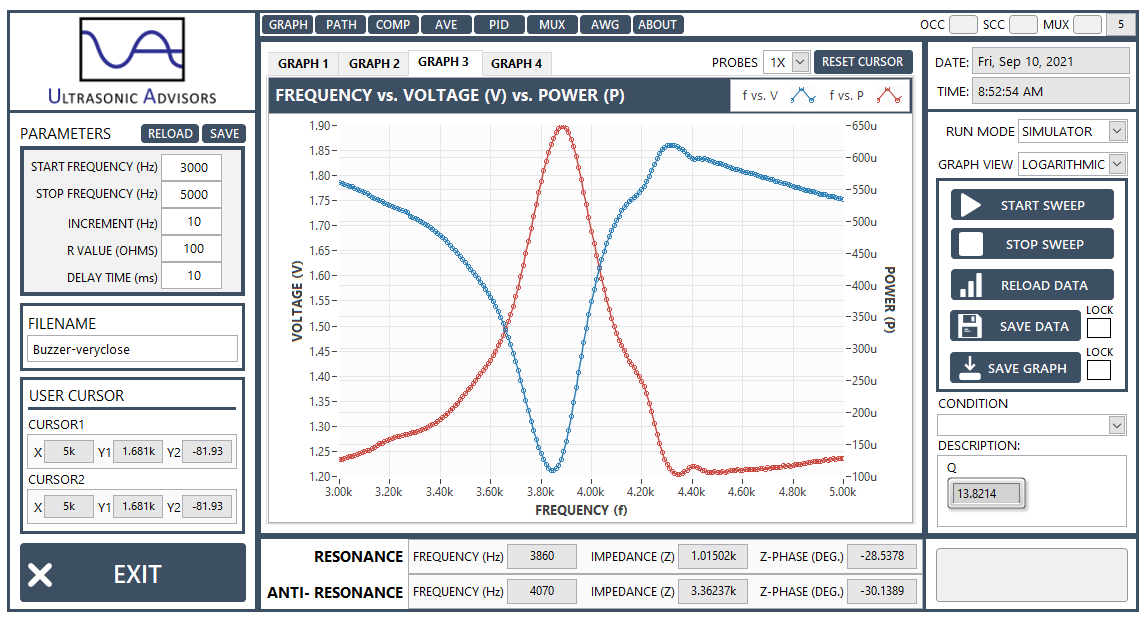

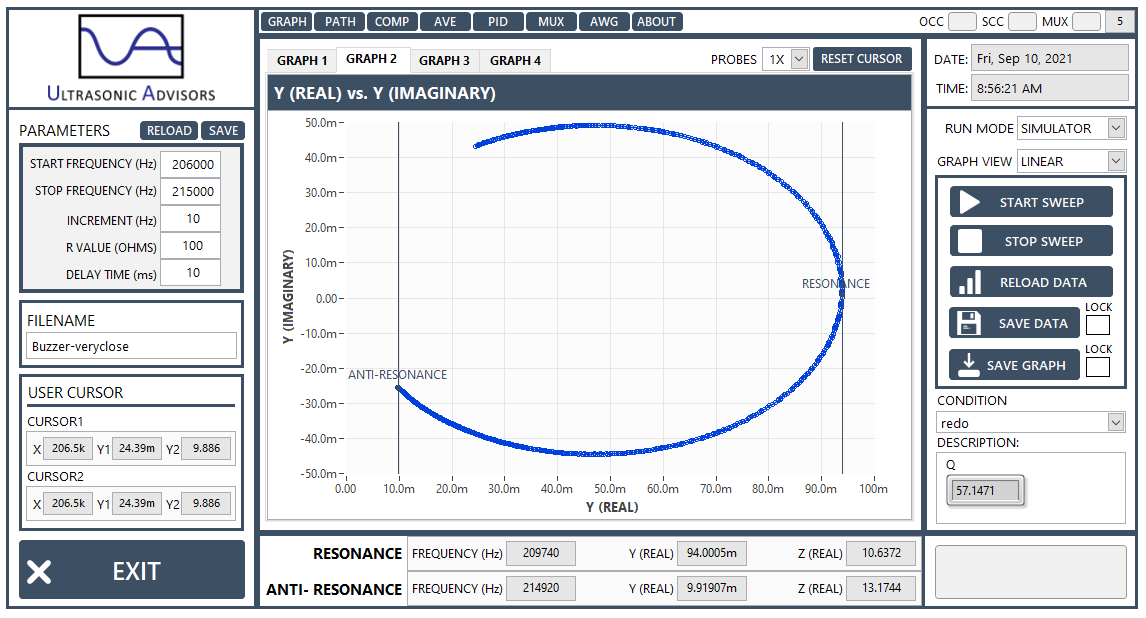

The product is a desktop program which programmatically controls a USB oscilloscope, function generator, and amplifier to perform high power measurements of ultrasonic transducers.
Who needs this product?
High power resonance characteristics strongly differ from low power results. Companies looking for a streamlined solution for high power analytical testing to ensure the quality of their transducers need this equipment.
Often times, a transducer has appropriate low power impedance characteristics, but in high power they severly degrade. This helps to explain why some transducers don't perform according to spec in system testing, but look fine in low power impedance analysis.
How does the product differ from an impedance analyzer?
The device differs from traditional impedance analyzer in that it:
- Readily uses and external amplifier of your choice

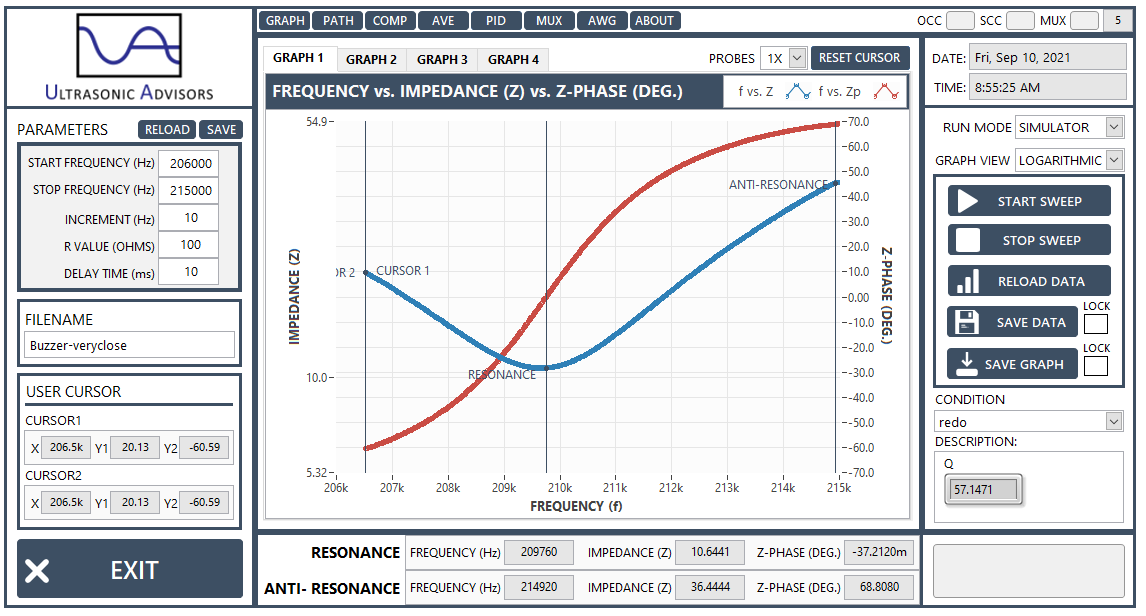

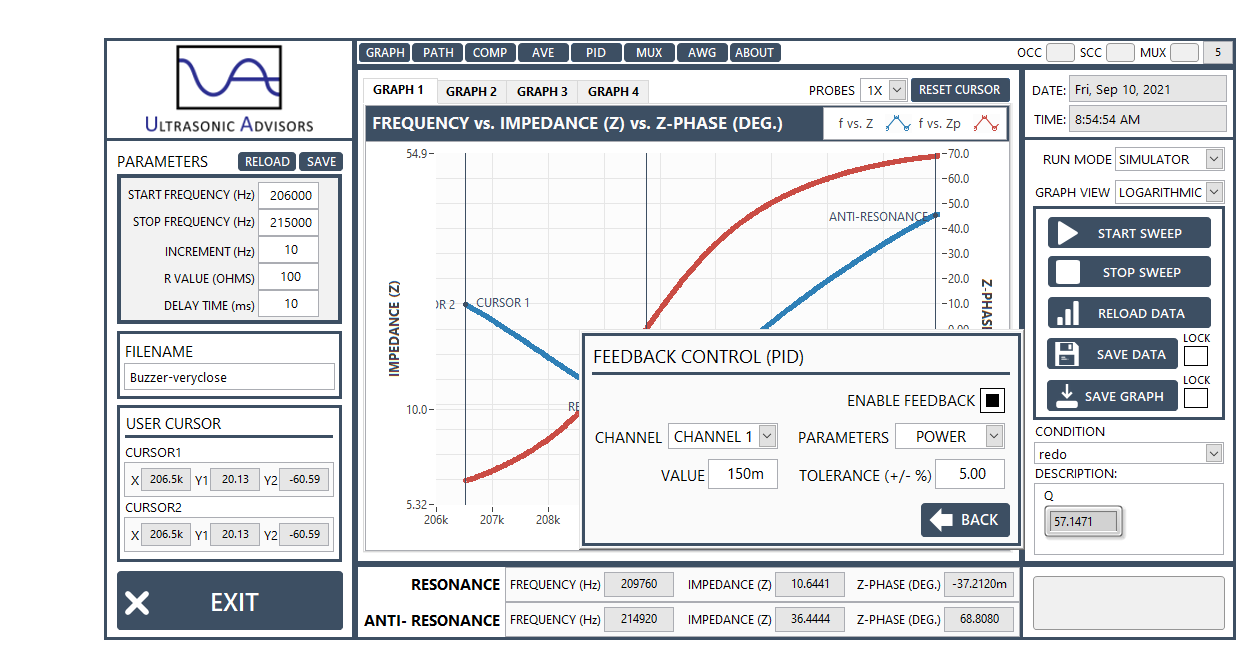

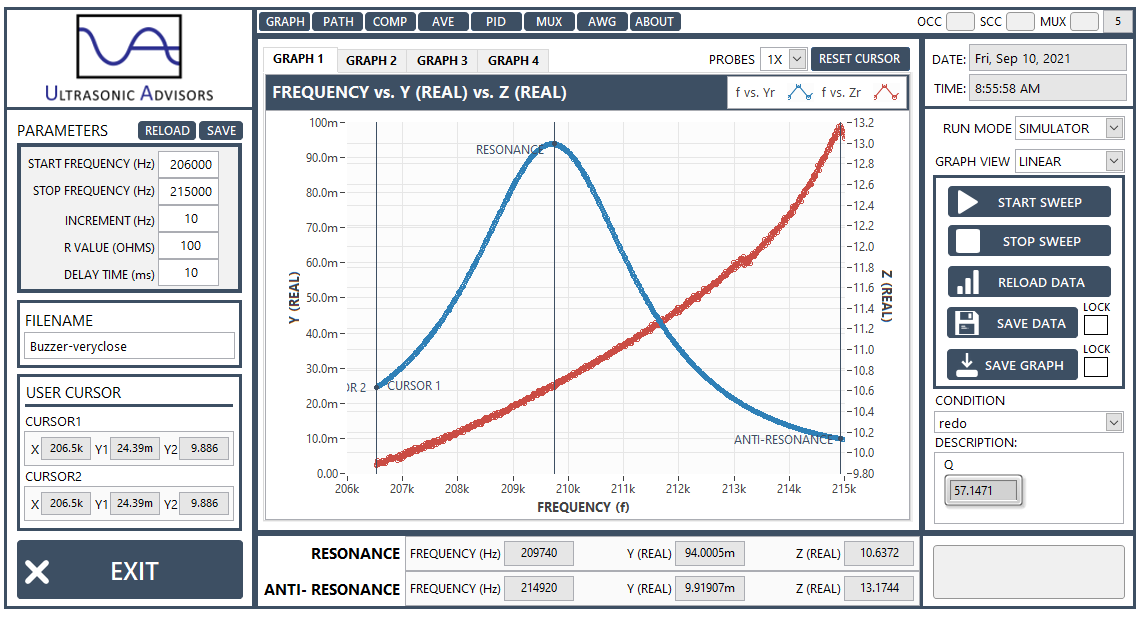

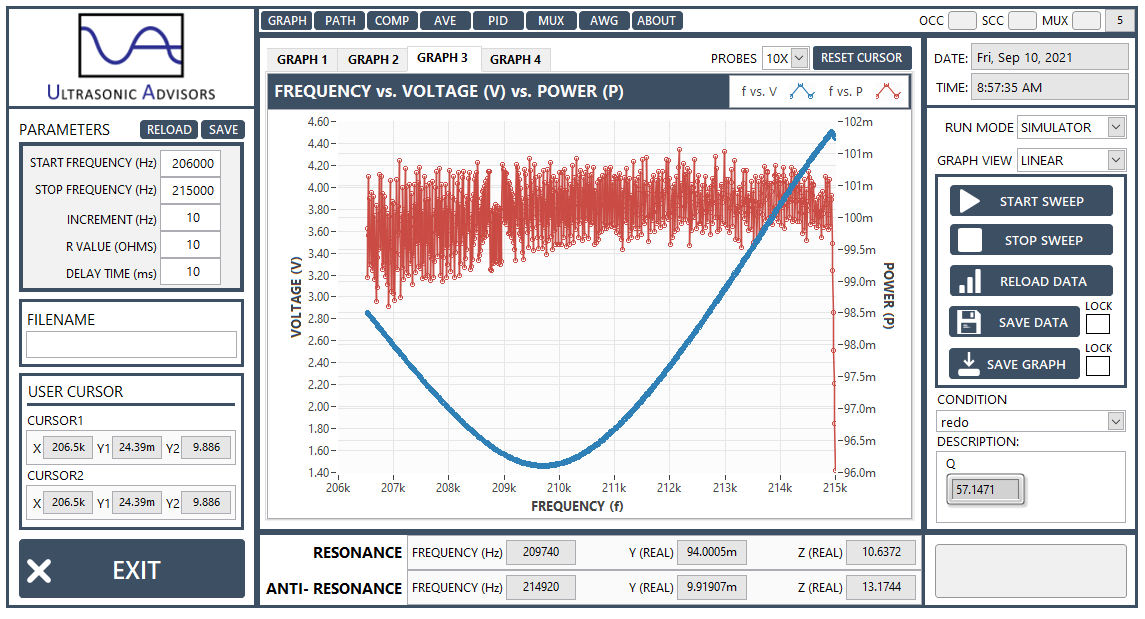

- Provides constant power, constant voltage, and constant current frequency sweeps
- Can store an unlimited amount of points
- Can be readily used with a relay multiplexer to test up to 16 devices with one press of a button
- Easily stores full data frequency sweeps, summary data, and graph screenshots either automatically or with a press of a button

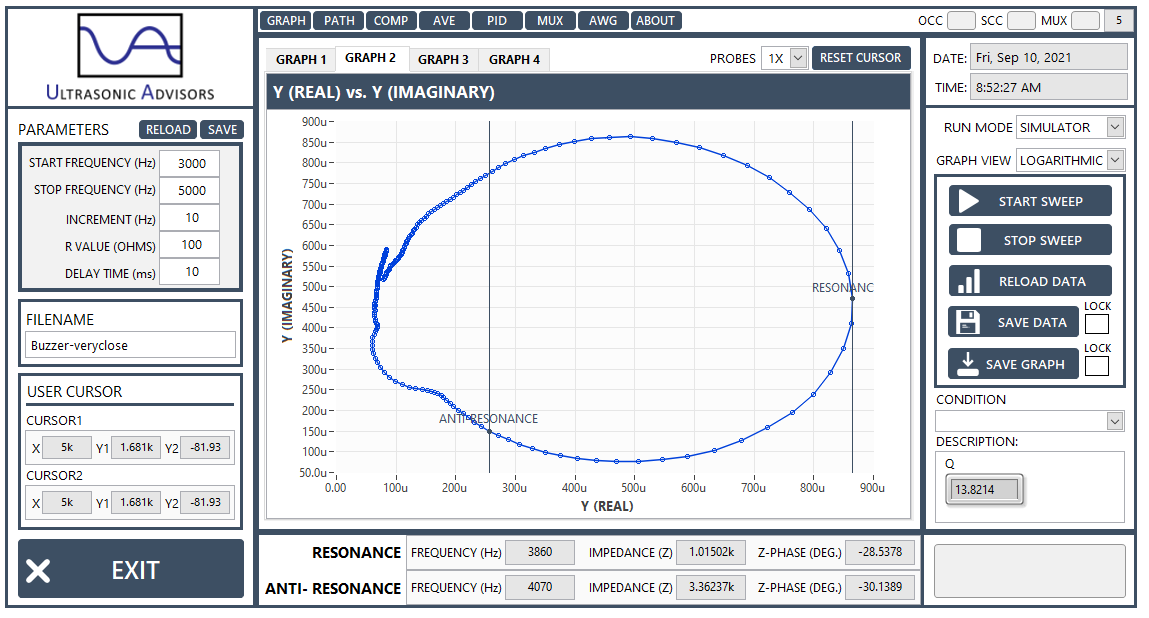

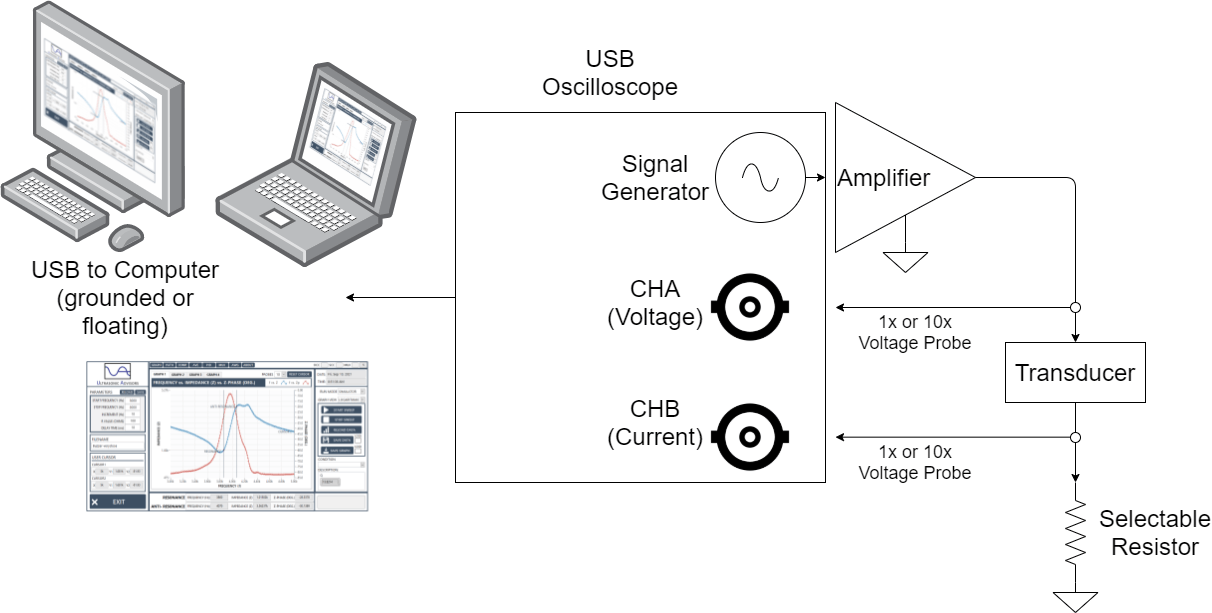

What do I need in order to operate the product?
- A linear amplifier
- 10x or 1x voltage probes
- Circuitry with ground side resistor (user selectable)
- PC running Windows
- USB oscilloscope, specifically Picoscope 2406a
- Various BNC connectors and cables
Does this product work at low voltage?

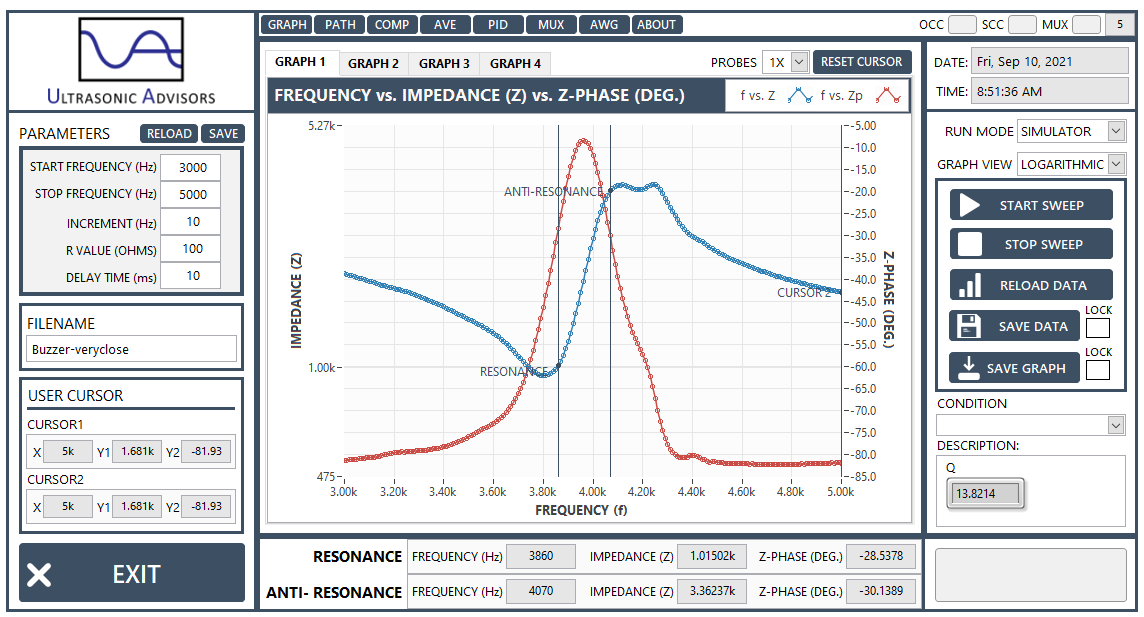

- Yes. it can be used as a low voltage impedance analyzer
What are the specifications?
| Parameter | Specification |
|---|---|
| Frequency | 1 Hz to 1MHz (up to 10 MHz with external generator) |
| Voltage | up to 200V amplitude |
| Current | 5uA to 5A (range selectable using current sense resistor) |
| Power | Depends on voltage and current values |
| 5uW to 100W | |
| Impedance | 1 Ohm to 1MOhm |
| Phase | -89 to 89 degrees |
| Number of data points | Unlimited |
| Closed loop parameters | Voltage, Current, Power, or Open Loop |
I want the product!
- The cost of the product is $4,950 which includes:
- The closed loop transducer analyzer program
- 2 hours of consultation regarding its use
- Detailed support for 3 months
- Contact me at husain@ultrasonicadvisors.com for questions or to inquire about other purchasing arrangements (bank transfer, PO)
