Piezo SHOCK Show #12: How do I interpret the second mode of a planar/radial resonator?

Husain Shekhani • August 30, 2021

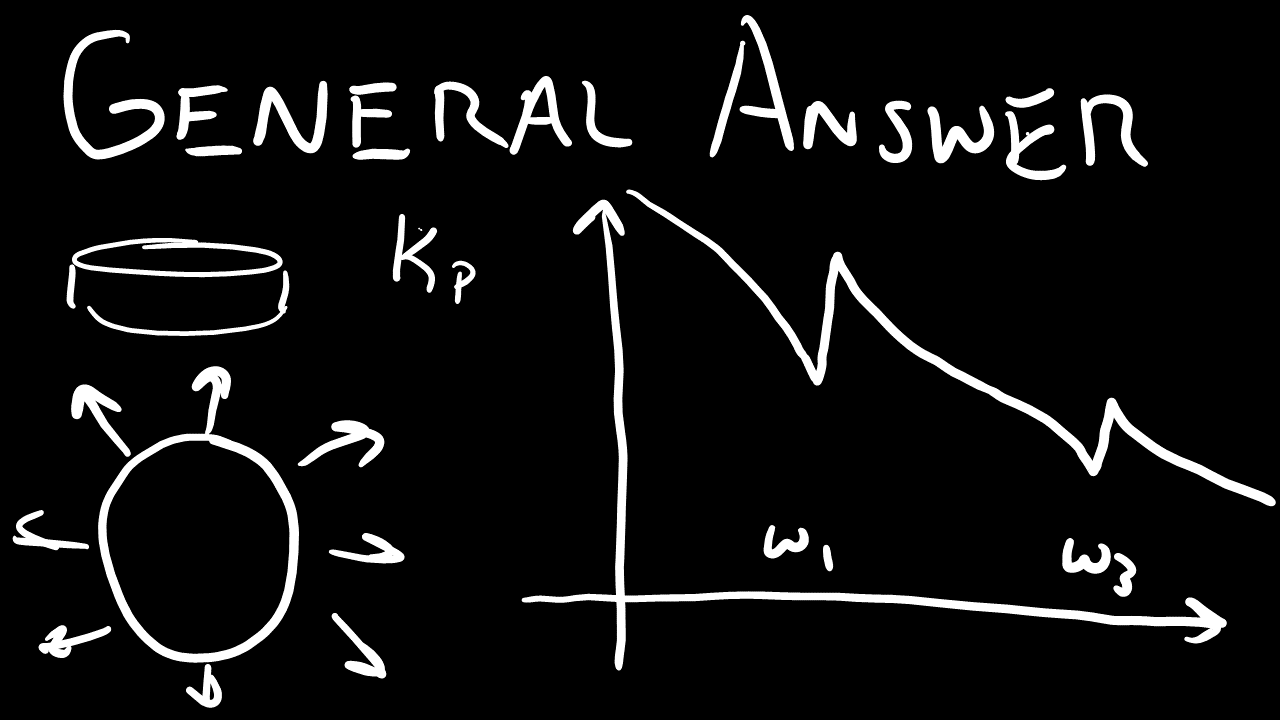

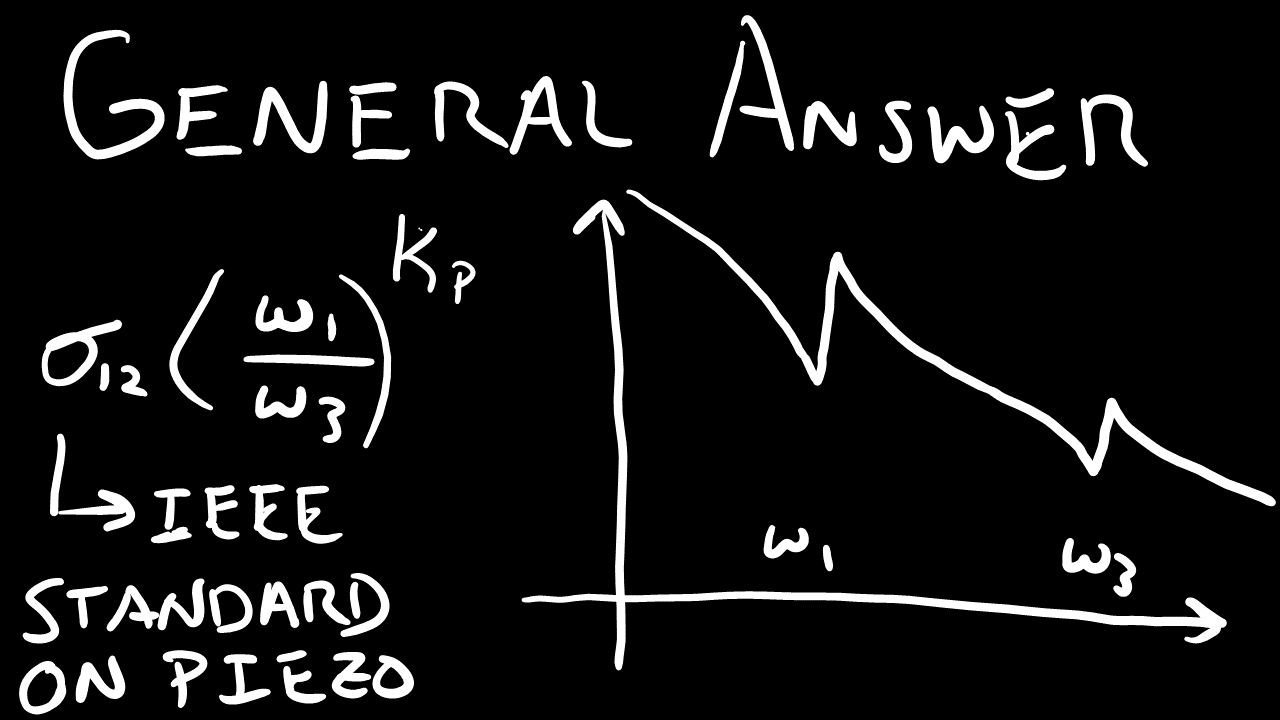

Welcome to the Piezo SHOCK Show #12. In this episode, I discuss the awesomeness that is planar resonators. Planar resonators take the cake in terms of being great all round material samples for property characterization. The third harmonic (second appearing mode) of a radial resonance provides vital data needed to resolve the elastic material properties.


Watch the episode here: https://youtu.be/R9b7JuwJVNk


I posted some of the visual notes below:
